Marina - Black PIR Wall Lamp with Clear Diffuser

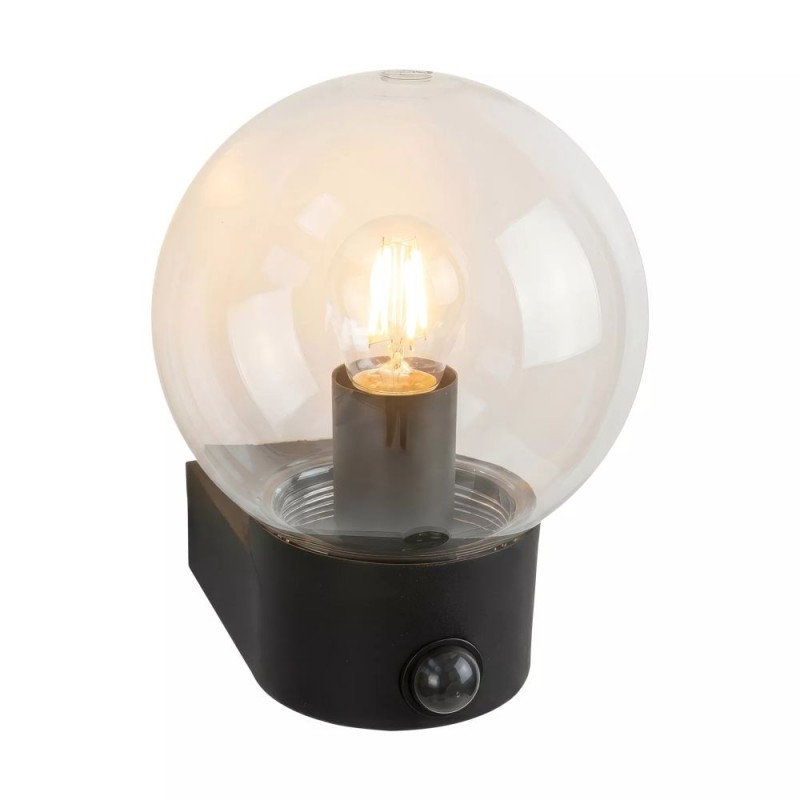

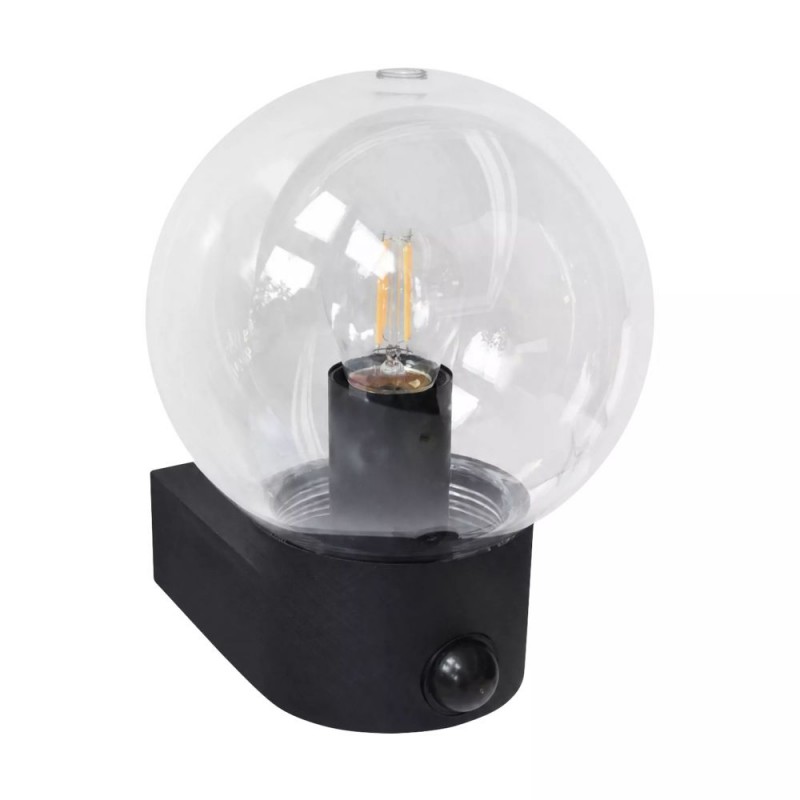

The Marina features a rounded globe diffuser mounted above a compact rectangular wall base in a black finish. Its simple geometric design gives the fitting a contemporary appearance that works well with modern homes and straightforward exterior architectural styles.

The body is made from black ABS plastic, while the clear globe diffuser is manufactured from PMMA acrylic. The globe surrounds the single light source and helps distribute illumination around the fitting.

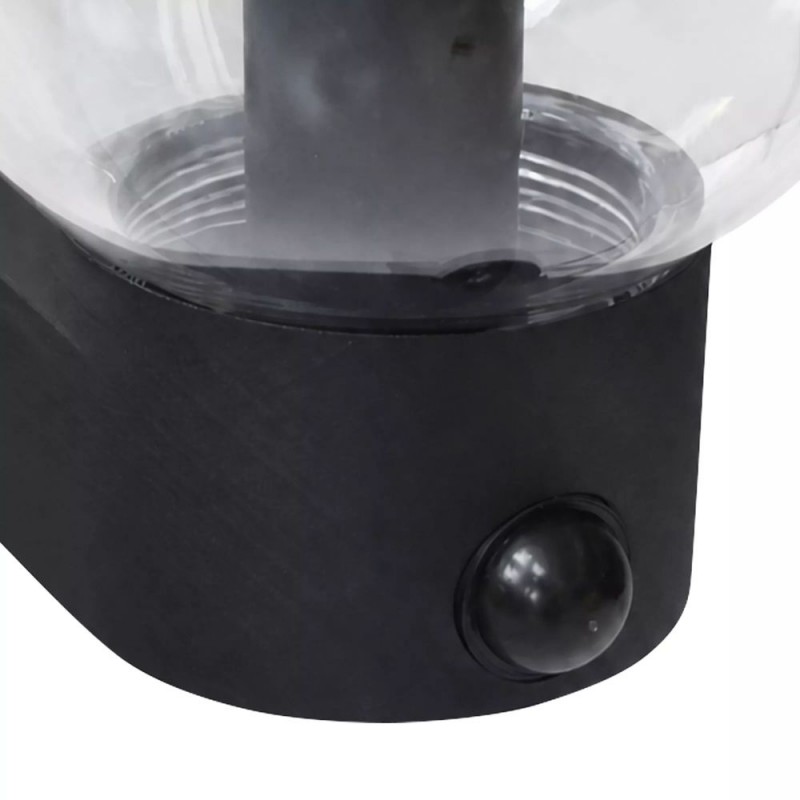

Measuring 19.2 cm high, 15 cm wide and projecting 16.5 cm from the wall, the light has a relatively compact profile. The PIR motion sensor is integrated into the lower wall-mounted section.

The Marina uses one replaceable E27 GLS LED bulb, which is not included. The clear globe diffuser surrounds the bulb, providing illumination around the fitting rather than concentrating the light into a narrow directional beam. Light output and colour temperature depend on the LED bulb selected.

Its built-in passive infrared (PIR) sensor detects movement and automatically activates the light when the surrounding light level falls below 20 lux. This means the motion sensor operates in dusk or dark conditions rather than switching the lamp on unnecessarily during normal daylight.

The sensor provides the following operating characteristics:

• Detection range: up to 600 cm when mounted at a height of 250 cm.
• Detection angle: 120°.
• Lighting duration: 1 minute after activation.
• Automatic re-triggering: further detected movement restarts the timer.
• Daylight threshold: fixed below 20 lux.
• Sensor sensitivity and operating settings: fixed and not adjustable.
• Initial sensor warm-up: 10 seconds after power is applied.

The fitting should be installed vertically. A mounting height of 250 cm is specified for achieving the stated maximum detection range. Positioning the sensor away from unnecessary heat sources can help reduce unwanted activation.

The manufacturer identifies this model as non-dimmable. It is intended for automatic on/off operation through the integrated PIR sensor.

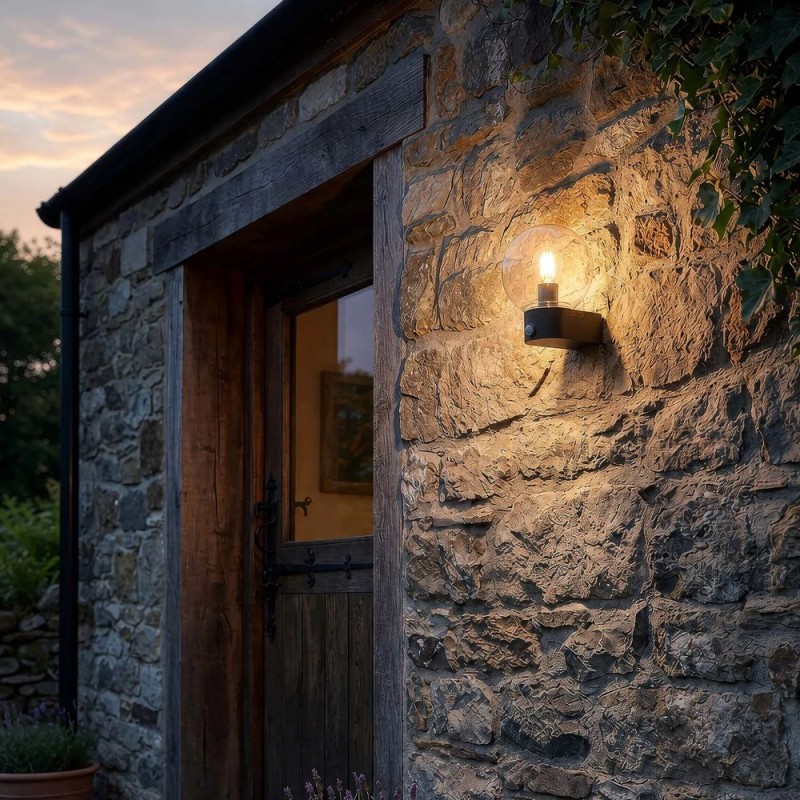

• Front entrances where automatic lighting is useful when arriving home after dark.
• Porches and sheltered external doorway areas.
• Pathways and side passages where people regularly approach or pass the fitting.
• Driveway entrances where motion-activated illumination is helpful.
• Patio entrances and access doors requiring occasional exterior lighting.
• Modern residential exteriors suited to a simple black globe-style wall light.
• Suitable for commercial building entrances requiring basic motion-activated exterior illumination.

• Built-in PIR motion sensor automatically operates the light when movement is detected in dark conditions.
• 120° detection angle provides coverage across the sensor's monitored area.
• Detection range of up to 600 cm offers useful coverage for entrances and approaching foot traffic when installed at the specified height.
• Fixed 1-minute illumination period provides temporary light after activation, with additional movement restarting the timer.
• Below-20-lux operating threshold helps prevent motion-triggered illumination during normal daylight.
• IP44 protection makes the fitting suitable for appropriately positioned outdoor wall installations.
• Replaceable E27 LED bulb allows the brightness and light colour to be selected separately.
• Class II double-insulated construction provides electrical protection without requiring a protective earth connection to the fitting.
• Black ABS body and clear PMMA globe create a lightweight, contemporary exterior design.

• Automatic PIR activation is practical for entrances where hands-free lighting is useful.
• Fixed sensor settings provide straightforward operation without separate sensitivity, timing or daylight adjustments.
• The spherical diffuser and black base offer a clean, understated appearance for external walls.
• A replaceable LED lamp provides flexibility when choosing light output and colour temperature.
• Compact dimensions make the Marina suitable for a range of domestic entrance and access areas.

How does the PIR motion sensor work?

The integrated PIR sensor detects movement when the surrounding light level is below 20 lux. It switches the bulb on for 1 minute when motion is detected. If further movement is detected, the timer restarts. The light does not normally activate from movement during daylight conditions.

Can the detection range or lighting duration be adjusted?

No. The sensor settings are fixed. It has a maximum detection range of 600 cm at a mounting height of 250 cm, a 120° detection angle and a 1-minute lighting period. The sensitivity and daylight threshold cannot be manually adjusted.

What bulb does the Searchlight Marina 39920BK-PIR require?

The fitting uses one E27 GLS LED bulb with a maximum stated wattage of 15W. The bulb is not supplied, so it must be purchased separately. The selected LED bulb determines the brightness and colour temperature of the light.

Is the Marina PIR wall light suitable for outdoor installation?

Yes. Its IP44 rating provides protection against splashing water and solid objects larger than 1 mm. It is suitable for appropriately positioned outdoor walls, including entrances and pathways. It should not be submerged or installed where it will be exposed to high-pressure water jets.

Can the Marina PIR wall light be dimmed?

No. The manufacturer specifies this model as non-dimmable. The integrated PIR sensor provides automatic on/off operation in low-light conditions, with a fixed lighting duration of 1 minute after movement is detected.
