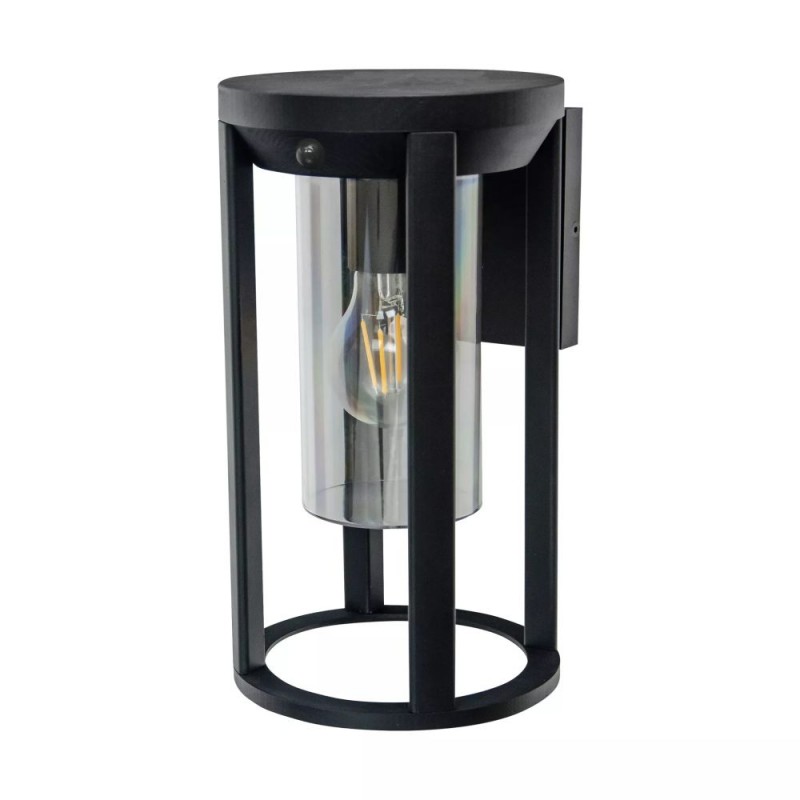

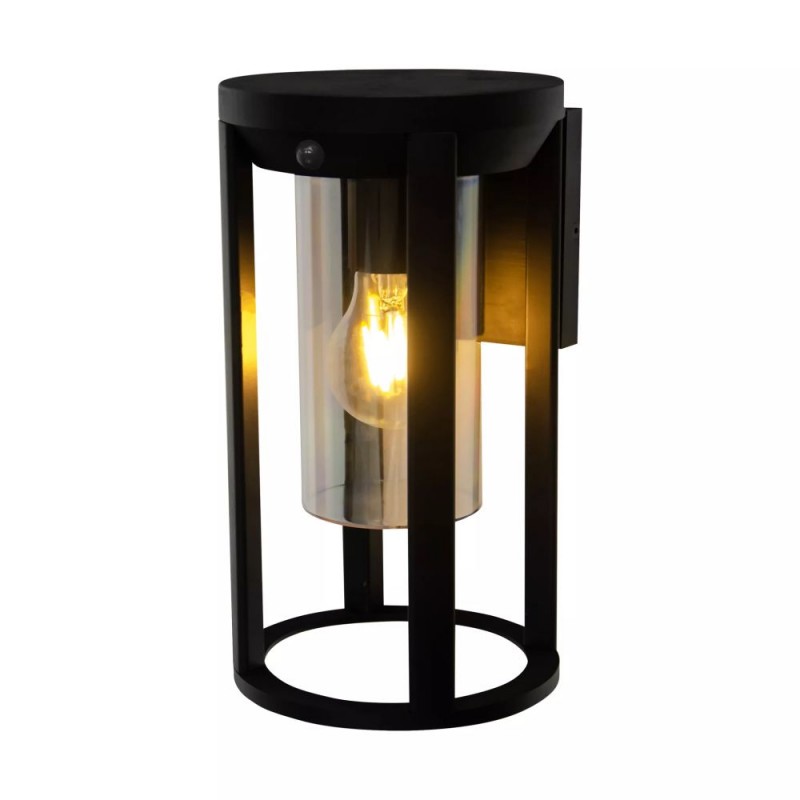

Maldives - Black PIR Wall Lamp with Clear Diffuser

The Maldives features a cylindrical black frame with evenly spaced vertical supports and circular detailing at the top and bottom. A clear polycarbonate shade sits inside the open outer structure, creating a layered appearance while keeping the light source visible.

Manufactured using ABS and polycarbonate, the fitting has a clean, understated design that suits contemporary houses, modern entrances and simple exterior architectural styles.

The PIR sensor is positioned beneath the main cylindrical body. Its compact arrangement keeps the movement detection function separate from the decorative shade without significantly changing the overall shape of the wall light.

The Maldives uses one replaceable E27 GLS LED bulb, which is not included. The clear polycarbonate shade allows light to pass through the cylindrical enclosure, providing illumination around the fitting. The actual brightness and colour of the light depend on the bulb selected.

Its integrated passive infrared (PIR) sensor automatically switches the light on when movement is detected in sufficiently dark conditions.

The manufacturer's installation instructions confirm the following sensor characteristics:

• Detection distance: up to 6 metres when installed at a height of 250 cm.
• Detection angle: 120 degrees.
• Activation threshold: ambient light below 20 lux.
• Illumination duration: 1 minute after activation.
• Repeat detection: additional movement restarts the one-minute timer.
• Initial start-up: approximately 10 seconds after power is applied.

The detection sensitivity, daylight threshold and illumination duration are factory-set and cannot be adjusted.

For the specified detection performance, the fitting should be installed vertically at a mounting height of 250 cm. The PIR sensor helps provide light when someone approaches an entrance or walks through the monitored area after dark, without requiring manual switching for each activation.

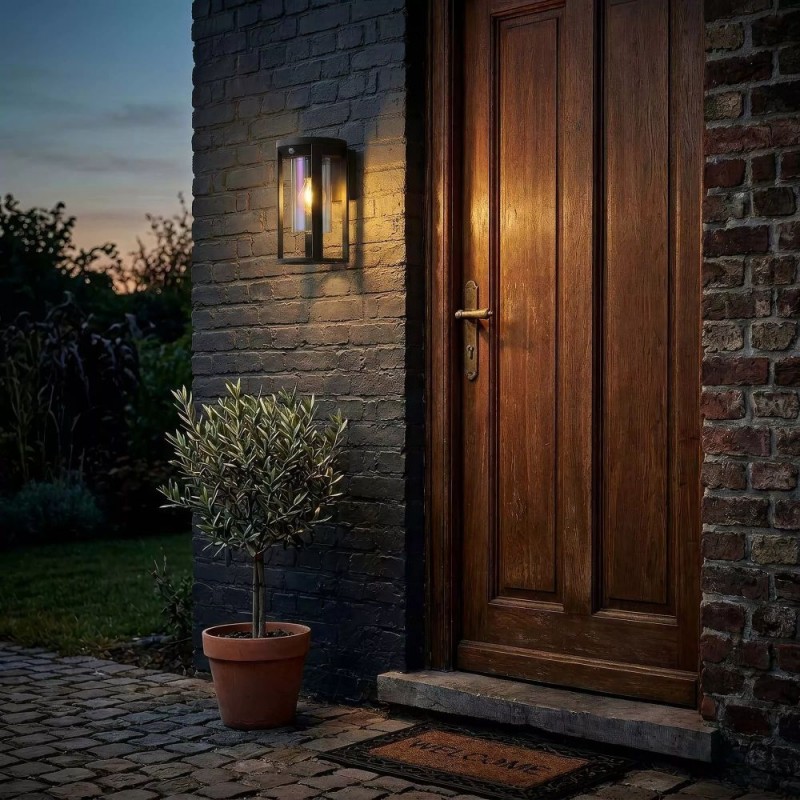

• Front door entrances where automatic lighting is useful when arriving home after dark.
• Back doors and side entrances requiring movement-activated illumination.
• Garden pathways and access routes alongside buildings.
• Exterior walls where a contemporary cylindrical light complements the architecture.
• Porches and sheltered entrance areas requiring an IP44-rated fitting.
• Residential properties where lighting is preferred only when movement is detected in darkness.
• Suitable for commercial building entrances and pedestrian access areas.

• Integrated PIR motion sensor: Activates the light automatically when movement is detected in dark conditions.
• Up to 6-metre detection range: Monitors approaching movement when installed at the manufacturer's specified mounting height.
• 120-degree detection angle: Provides movement coverage across a defined area in front of the fitting.
• Automatic dusk operation: The sensor activates only when the ambient light level falls below 20 lux.
• One-minute lighting period: Provides temporary illumination, with further movement restarting the timer.
• IP44 protection: Suitable for outdoor locations where protection against splashing water is required.
• Replaceable E27 bulb: Allows the light source to be replaced without changing the complete fitting.
• Clear polycarbonate shade: Allows illumination through the enclosure while complementing the open-frame construction.
• Class II double insulation: Provides an additional electrical safety feature without requiring an earth connection to the fitting.

• Combines a decorative outdoor wall light with automatic PIR operation in one fitting.
• Fixed sensor settings provide straightforward operation without manual adjustments after installation.
• The black cylindrical design works well with modern exterior doors, walls and entrance features.
• A replaceable E27 LED bulb makes future bulb replacement possible without replacing the complete wall light.
• The clear enclosure and open surrounding frame provide a distinctive alternative to a fully enclosed exterior wall lantern.
• The manufacturer's detailed sensor specifications help with planning the installation position and expected detection coverage.

How does the PIR sensor work on the Maldives wall light?

The PIR sensor detects movement when the surrounding light level is below 20 lux. Once activated, the lamp remains illuminated for one minute. Further movement restarts the timer. The sensor has a maximum detection range of 6 metres and a 120-degree detection angle when installed at the specified height.

Can I adjust the motion sensor's detection range or lighting time?

No. The sensor settings are fixed by the manufacturer. Its illumination period is one minute, the daylight activation threshold is below 20 lux, and sensitivity cannot be adjusted. Positioning the light correctly is therefore important when planning the area you want the sensor to monitor.

What bulb does the Searchlight Maldives 38830BK-PIR require?

The fitting requires one E27 GLS LED bulb, which must be purchased separately. The manufacturer's product information lists a 25W equivalent bulb requirement. A suitable LED bulb should be selected with the correct cap, physical shape and wattage.

Is the Maldives PIR wall light suitable for outdoor use?

Yes. It has an IP44 rating, providing protection against solid objects larger than 1 mm and splashing water from any direction. It is designed for outdoor wall mounting, including entrances, porches and pathways. It is not intended for immersion in water or direct high-pressure water jets.

Where should I install the wall light for the best motion detection?

Searchlight specifies vertical installation at a mounting height of 250 cm to achieve the stated maximum detection range of 6 metres. The sensor should face the area where movement needs to be detected. Nearby heat sources or small animals may sometimes trigger the sensor unintentionally.
