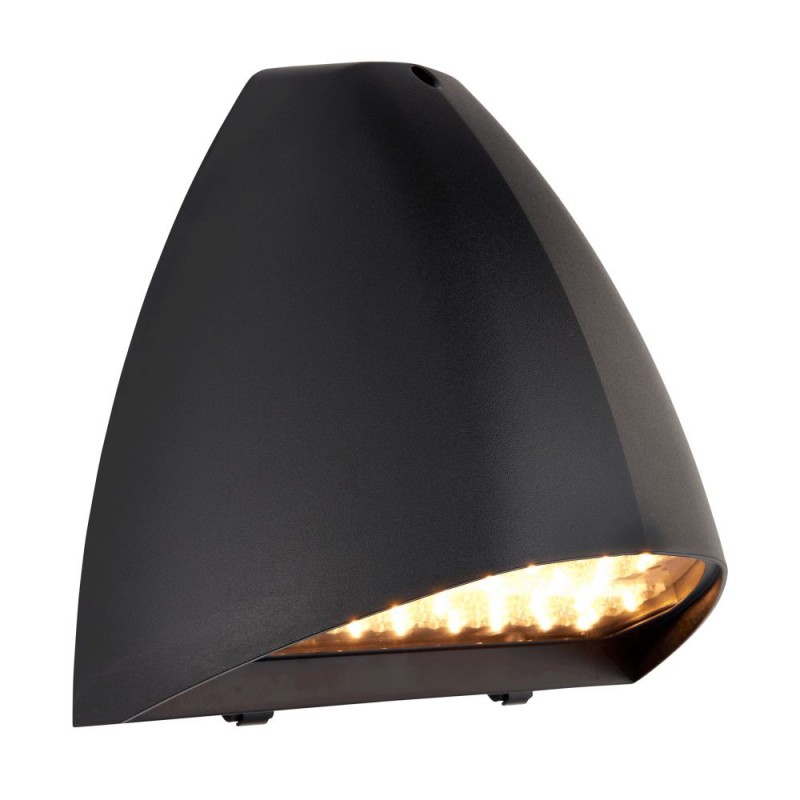

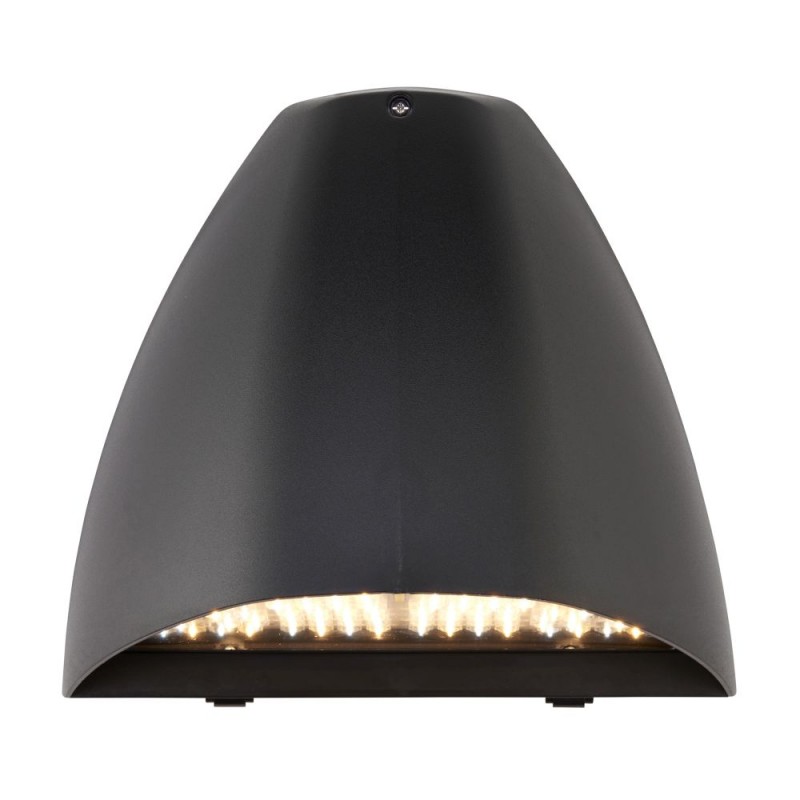

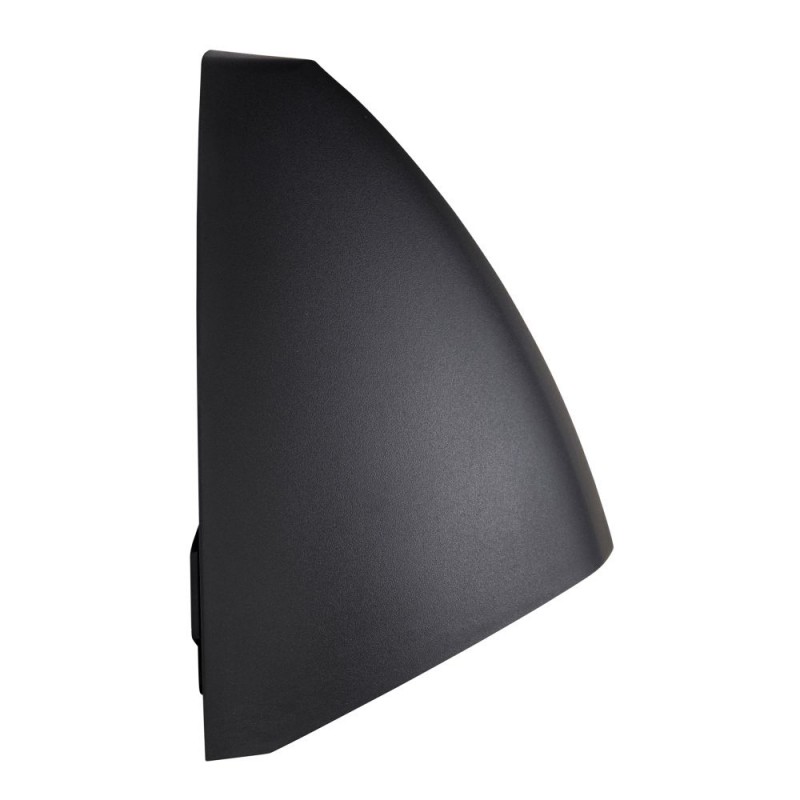

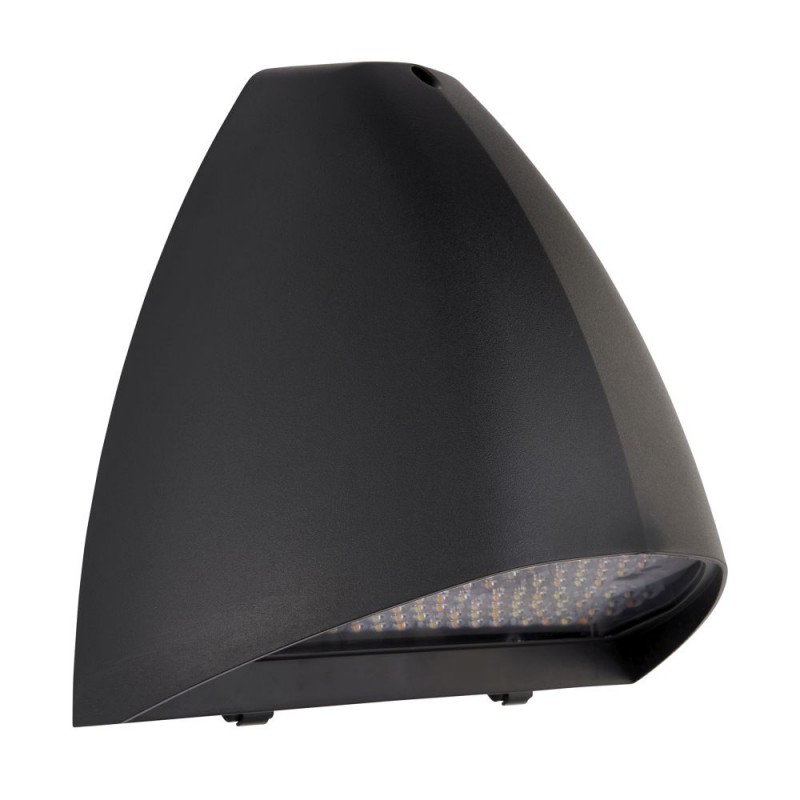

Forge is a robust and versatile 4CCT exterior wall pack designed for performance and ease of installation. Featuring loop-in/loop-out wiring, a push-fit terminal block, tri-wattage and four colour switches and 20mm conduit entry points, it offers maximum flexibility straight out of the box. It also boasts durable IP65 and IK10 rated construction and a wide 120° beam angle. Available in two sizes with optional photocell functionality, it's the ideal solution for lighting pathways, perimeters, and commercial exteriors.

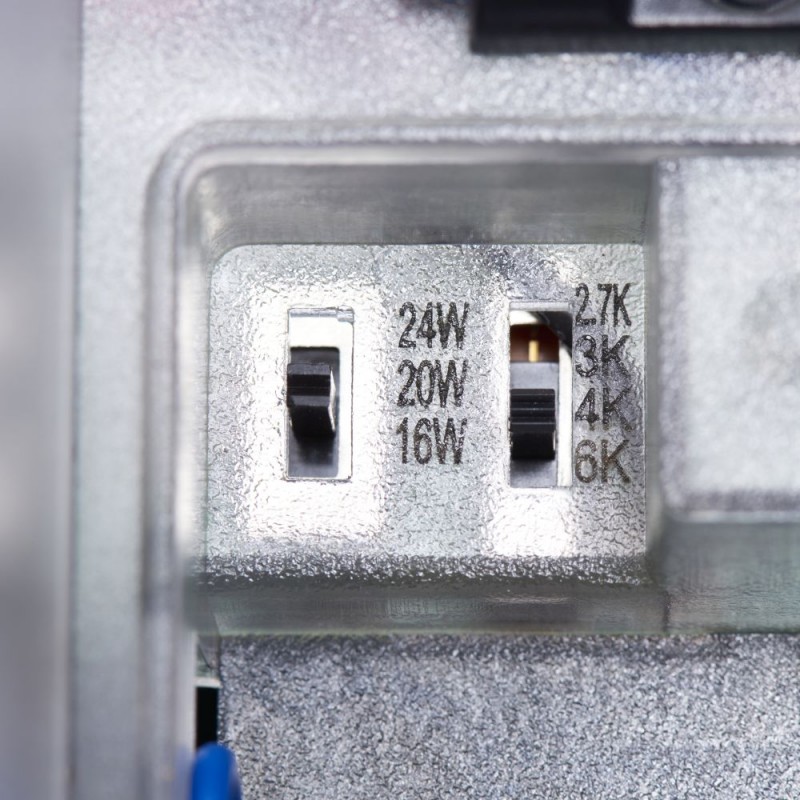

- Selectable Wattage switch - 16W/20W/24W
- CCT - Adjustable Colour Temperatures: Choose between different colour temperatures (2700K, 3000K, 4000K, 6000K)
Product range name and SKU: Forge XL - 121023
This product is supplied by Saxby Lighting
| Product Info | |
| Brand | Saxby |
| Product Code | 121023 |
| Range Name | Forge XL |
| Dimensions | |
| Height (cm) | 27.4 cm |
| Width (cm) | 30.1 cm |
| Depth (cm) | 16.1 cm |
| Bulb | |
| Energy Efficiency Class | F |
| Bulb Included | Yes |
| Number of Lights | 1 |
| Lamp Holder Type | Integrated LED |
| Type of Included Bulb | LED (build-in) |
| Colour Temperature (Kelvin) | 6000 K, 4000 K, 3000 K, 2700 K |
| Lumens Output | 2160 lm, 2700 lm, 3240 lm |
| Maximum Wattage (W) | LED 16W, LED 20W, LED 24W |
| Product Finish | |
| Shade / Diffuser Material | Acrylic / Plastic |
| Shade / Diffuser Colour | Transparent / Clear |
| Frame / Base Material | Acrylic / Plastic |
| Frame / Base Colour | Black |
| Features | |
| IP Rating | IP65 |
| Class of Insulation | Class 2 (Double Insulated) |
| Impact Resistance | IK 10 |
| Switch Type | Mains Operated |
| Extras | CCT - Colour Changing Technology, Selectable Wattage Switch |
How bright is a light bulb?
Because the Lumen output from different manufacturers will vary. Here's a quick and easy guide to approximate total Lumen output.
Lumens |
Watts |
| 2600 Lumens (lm) | 150W |
| 1600 Lumens (lm) | 100W |
| 1100 Lumens (lm) | 75W |
| 800 Lumens (lm) | 60W |
| 450 Lumens (lm) | 40W |
Understanding LED colour temperature and the Kelvin scale
Colour temperature 2000K to 3000K, the light produced is often referred to as a "warm white", "soft white", occasionally called a "candle white". It ranges from orange-ish to yellow-ish white in appearance. This kind of light is attractive, enjoyable, comfortable and relaxing.
Colour temperature 3100K to 4500K, the light produced is often referred to as a "neutral white", "bright white" or "natural white". Light sources within this range will emit a more neutral white light and may even have a slightly blue tint. This kind of light is bright, vibrant and clean appearing.

Colour temperature 4600K and above, the light produced is often referred to as a "cool white", "pure white" or "day white". Light sources in this range will have a blue-ish white tint to them. The higher the number, the more blueish it will appear. This kind of light will appear crisp, invigorating and energetic.
Please refer to full guide described in the main LED bulbs description
