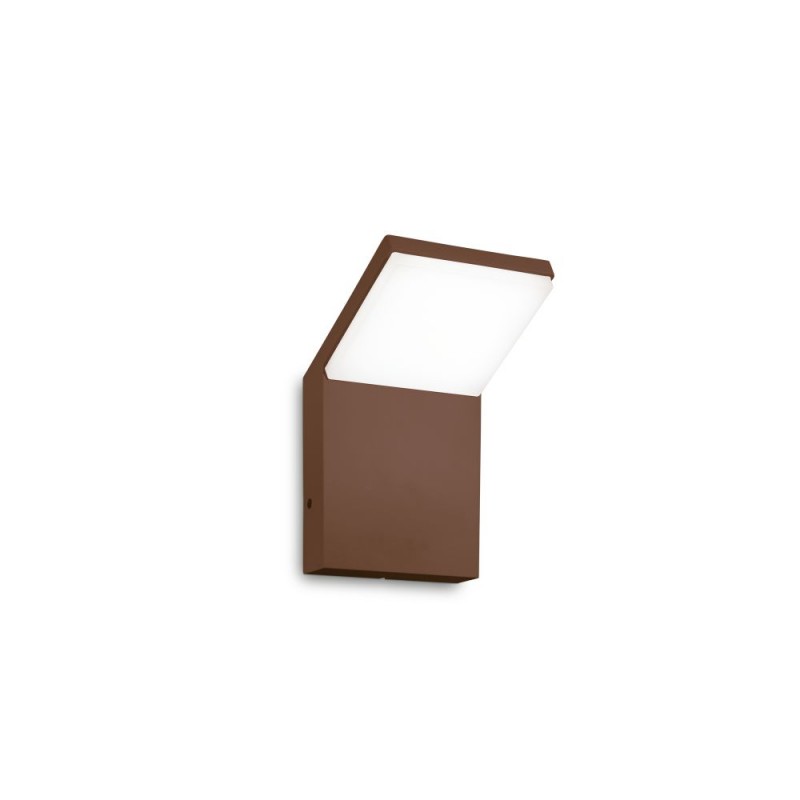

The Ideal Lux Style 322704 is a compact outdoor LED wall light designed for entrances, patios, terraces and other exterior areas where a neat, contemporary fitting is required. Finished in coffee brown, it combines a powder-coated aluminium body with an opal plastic diffuser and an integrated 8.5W LED light source. The warm 3000K colour temperature is suited to residential outdoor lighting, while the IP54 rating provides protection against dust ingress and splashing water. Measuring 16.5 cm high, 10 cm wide and projecting 10.5 cm from the wall, the Style is particularly useful where a relatively discreet fitting is preferred without sacrificing practical illumination.
The Style has a clean, compact form suited to contemporary exterior architecture. Its aluminium body is finished in a coffee-coloured powder coating, providing a warmer alternative to conventional black, grey or anthracite outdoor fittings. An opal plastic diffuser softens the appearance of the integrated LED source and creates an evenly illuminated surface rather than exposing individual LEDs.
At 16.5 cm high and 10 cm wide, the fitting has restrained proportions that work well beside doors, along pathways or on patio walls where a larger outdoor lantern could appear visually heavy.
An integrated 8.5W SMD LED module provides warm white light at 3000K. The manufacturer specifies a useful light output of 950 lumens and a broad 120-degree beam angle. This wide distribution makes the fitting suitable for general exterior wall lighting rather than producing a narrow spotlight effect.
The LED has a rated life of 30,000 hours and a colour rendering index above 80. The light source is integrated and is not designed as a user-replaceable bulb, so no separate lamp is required.
This model uses straightforward on/off control and is specifically listed as non-dimmable. Its IP54 protection rating makes it suitable for exterior installation where the fitting may be exposed to dust and splashing water.
- Exterior walls beside front or rear entrances
- Patios and terraces requiring warm white illumination
- Balconies and sheltered outdoor seating areas
- Garden walls and exterior circulation areas
- Contemporary homes with brown, bronze or earthy exterior finishes
- Locations where a compact 16.5 cm high wall light is preferable
- Outdoor installations requiring an IP54 rated fitting
- Integrated 8.5W LED source means there is no separate bulb to purchase.
- Warm 3000K light provides a softer alternative to cooler white exterior lighting.
- 780 lumen useful light output provides practical illumination from a compact fitting.
- Wide 120-degree beam distributes light across a broader area.
- IP54 protection is suitable for outdoor locations exposed to dust and splashing water.
- Powder-coated aluminium body provides a practical construction for exterior wall mounting.
- Opal plastic diffuser conceals the individual LED components and spreads the emitted light.
- Compact 10 cm width helps the fitting sit neatly beside doors and on narrower wall areas.
- Rated LED life of 30,000 hours reduces the need for routine lamp replacement.
- Combines a contemporary exterior design with a distinctive coffee finish.
- Provides integrated warm white LED lighting in one complete wall-mounted fitting.
- Its IP54 rating supports use in a wide range of residential outdoor locations.
- The broad beam angle makes it useful for general entrance, patio and pathway lighting.
- Compact dimensions make it suitable where wall space is limited.
- On/off operation keeps the lighting arrangement simple and straightforward.
| Brand | Ideal Lux |
|---|---|
| Collection | Style |
| Product Code | 322704 |
| EAN | 8021696322704 |
| Product Type | Outdoor wall light |
| Finish | Coffee |
| Material | Powder-coated aluminium |
| Diffuser Material | Opal plastic |
| Integrated LED | Yes, SMD LED |
| Maximum Wattage | 8.5W integrated LED |
| Lumens | 9500 lm |
| Colour Temperature | 3000K warm white |
| CRI | >80 |
| Beam Angle | 120 degrees |
| LED Life | 30,000 hours |
| Dimmable | No, on/off operation |
| Voltage | 100-240V AC, 50/60Hz |
| IP Rating | IP54 |
| Class of Insulation | Class I |
| Height | 16.5 cm |
| Width | 10 cm |
| Projection | 10.5 cm |
| Weight | 0.39 kg |
| Operating Temperature | -15°C to +45°C |
| Installation Type | Wall mounted |
| Switch Type | On/off |
Is the LED included with the Ideal Lux Style 322704?
Yes. This wall light has an integrated 8.5W SMD LED module, so there is no separate bulb to purchase. The integrated light source provides warm white 3000K illumination and has a manufacturer-rated life of 30,000 hours.
Can this outdoor wall light be dimmed?
No. Ideal Lux specifies the Style 322704 as a non-dimmable fitting with standard on/off operation. It should therefore be used with a conventional switched supply rather than a dimmer control.
Can the Ideal Lux Style 322704 be used outdoors?
Yes. It is designed as an outdoor wall light and has an IP54 protection rating. This provides protection against limited dust ingress and splashing water, making it suitable for many exterior wall locations around the home.
How much light does the Style 322704 produce?
The manufacturer specifies a useful light flux of 950 lumens and a broad 120-degree beam angle, helping distribute warm 3000K light across the surrounding area.
How large is the fitting?

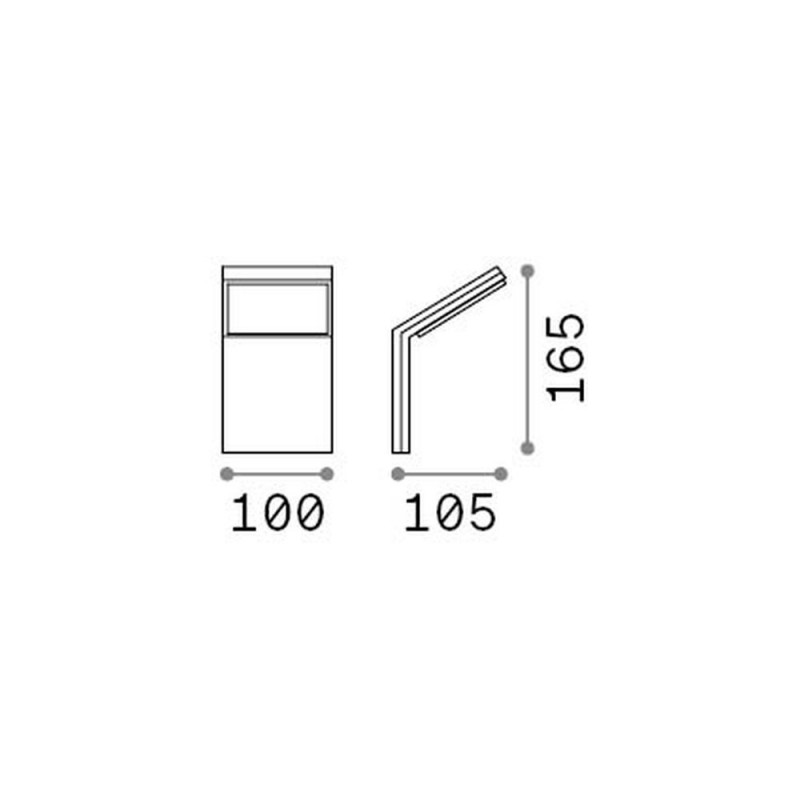

The Style 322704 measures 16.5 cm high, 10 cm wide and projects 10.5 cm from the wall. Its compact proportions make it practical beside doors, on terraces and in other locations where a relatively small exterior wall light is preferred.
Product range name and SKU: Style - 322704
This product is supplied by Ideal Lux
| Product Info | |
| Brand | Ideal Lux |
| Product Code | 322704 |
| Range Name | Style |
| Dimensions | |
| Height (cm) | 16.5 cm |
| Width (cm) | 10 cm |
| Depth (cm) | 10.5 cm |
| Bulb | |
| Energy Efficiency Class | F |
| Bulb Included | Yes |
| Number of Lights | 1 |
| Lamp Holder Type | Integrated LED |
| Type of Included Bulb | LED (build-in) |
| Colour Temperature (Kelvin) | 3000 K |
| Lumens Output | 950 lm |
| Maximum Wattage (W) | LED 8.5W |
| Product Finish | |
| Shade / Diffuser Material | Acrylic / Plastic |
| Shade / Diffuser Colour | White |
| Frame / Base Material | Metal |
| Frame / Base Colour | Brown / Bronze |
| Features | |
| IP Rating | IP54 |
| Class of Insulation | Class 1 |
| Switch Type | Mains Operated |
How bright is a light bulb?
Because the Lumen output from different manufacturers will vary. Here's a quick and easy guide to approximate total Lumen output.
Lumens |
Watts |
| 2600 Lumens (lm) | 150W |
| 1600 Lumens (lm) | 100W |
| 1100 Lumens (lm) | 75W |
| 800 Lumens (lm) | 60W |
| 450 Lumens (lm) | 40W |
Understanding LED colour temperature and the Kelvin scale
Colour temperature 2000K to 3000K, the light produced is often referred to as a "warm white", "soft white", occasionally called a "candle white". It ranges from orange-ish to yellow-ish white in appearance. This kind of light is attractive, enjoyable, comfortable and relaxing.
Colour temperature 3100K to 4500K, the light produced is often referred to as a "neutral white", "bright white" or "natural white". Light sources within this range will emit a more neutral white light and may even have a slightly blue tint. This kind of light is bright, vibrant and clean appearing.

Colour temperature 4600K and above, the light produced is often referred to as a "cool white", "pure white" or "day white". Light sources in this range will have a blue-ish white tint to them. The higher the number, the more blueish it will appear. This kind of light will appear crisp, invigorating and energetic.
Please refer to full guide described in the main LED bulbs description
